Finding the internal name of a value on a Form

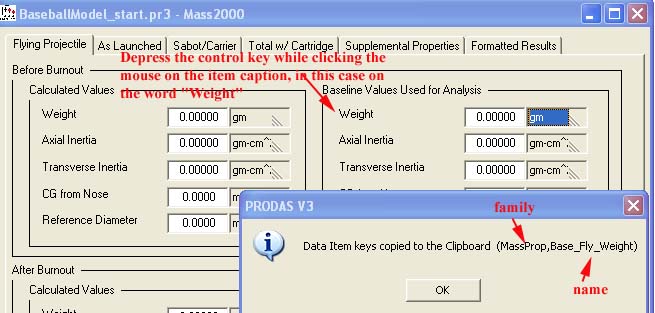

We had decided that we wanted to use the mass and diameter calculated by the Mass Properties analysis for two of our program inputs. There is a trick to find the variable's family and name for an item displayed on a form. The screen below shows the method.

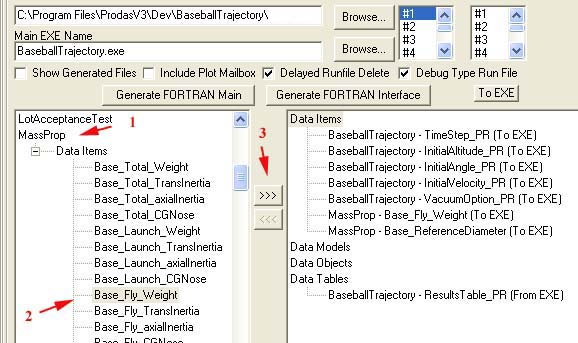

So now I know what variable to choose for weight can do the same for diameter.
