Pulling Forebody Properties from the Model Editor

We will be pulling some values for the "7DOF Parameters" "Forebody Properties" directly from the despun assembly properties in the model editor. Currently the projectile's units are set using the spinner large caliber template. That is what we want in general but for the despun nose's mass and inertias we will need to temporarily toggle to a small caliber template since the values are small.

Please choose "Apply Template" from the Edit menu as shown below.

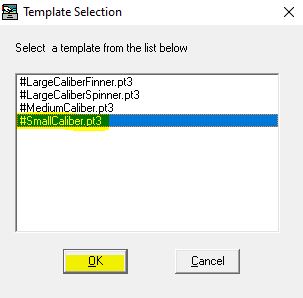

Please select "#SmallCaliber.pr3" and click "OK"

Note, you will have to close and reopen "Trajectory Contraj 7DOF" for the template change to be applied. Please close and then reopen the Contraj 7DOF analysis now.
