| Model Preparation |
This page shows the Rocket Motor Design Module user the modeling steps required prior to use of the Rocket Motor Design tools.

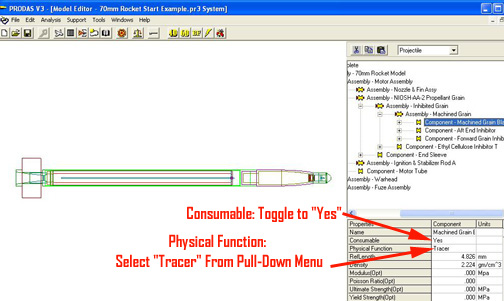

To use the Rocket Motor Design tools contained within PRODAS, the user should verify in the model editor that the rocket motor grain is identified with a Yes for the Consumable component category, and the Physical Function is selected as Tracer from the pull-down menu. The figure below shows appropriate values for those inputs.
