| Plotted Results |

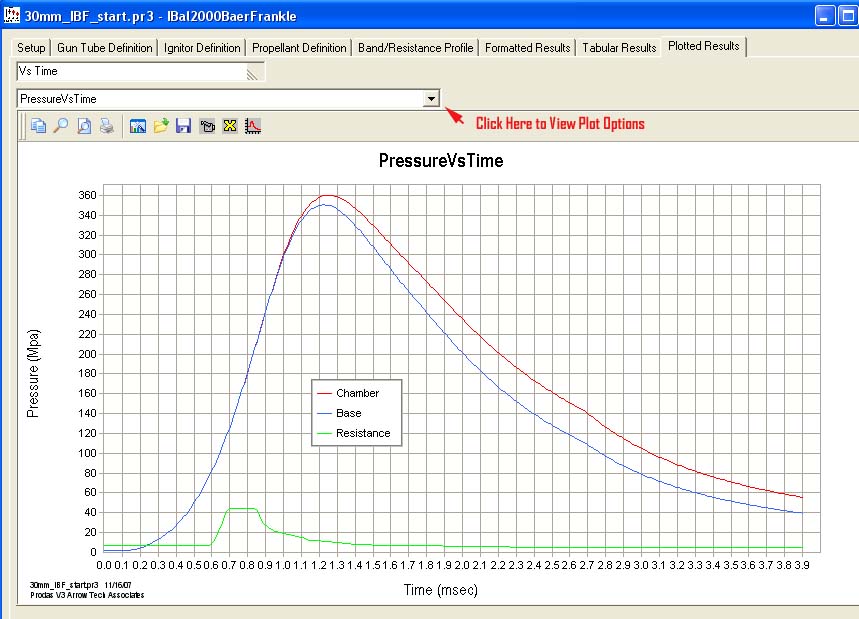

Here you view the results of the Baer-Frankle interior ballistics analysis module in graphical form. This image shows the results of the Baer-Frankle Analysis plotted as a function of time. Plotting the results of interior ballistics simulations as a function of time makes for easy pressure comparisons with empirical data as pressure data is generally acquired against a time base.
Clicking on the Plotted Results tab should look like this:
By Clicking on the Down Arrow to the right of the TravelVsTime plot selection, you can select other plots to display.
