It is now time to look at the results of the Baer-Frankle interior ballistics analysis module. This page contains the pressure, velocity and travel of the projectile as a function of time. The user can click and hold the scroll button on the right hand side of the display to scan through the tabulated results from start to end.

On this page, the user should scroll down through the results to ensure the maximum breech pressure is close to the desired value and then scroll to the end of the file for a quick check on the computed muzzle velocity.

A quick scan of the results indicates a peak BreechPressure of slightly higher than 330 MPa is obtained. This result is sufficiently close to the desired answer for the moment.

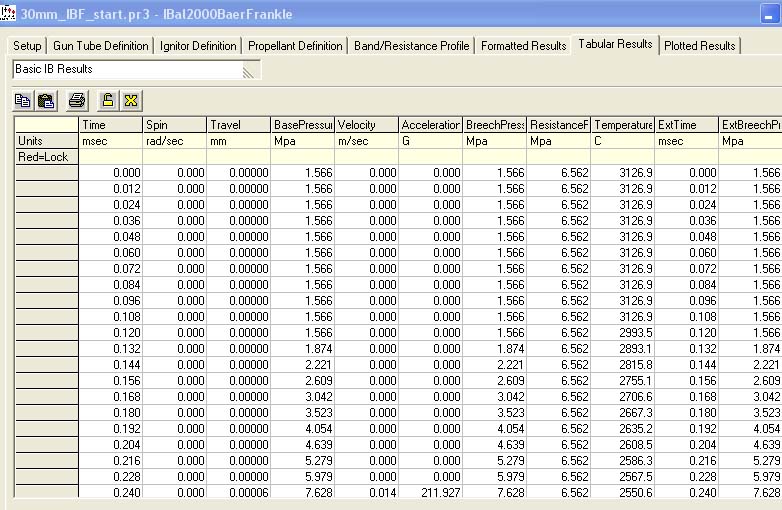

Clicking on the Tabular Results Tab should look like the screen capture below:

This is the "Basic IB" results of the Baer-Frankle Analysis in tabular form, which is useful for copying to a spreadsheet for documentation purposes or for cross plotting outside of the PRODAS environment.
