1. Open up the 3D Visualizer using the menu options Support - 3D Visualizer or the icon.
2. Remove any components that are visible that you don't want to fly down range (ie. Cartridge Case) by double clicking on the ON/OFF column.

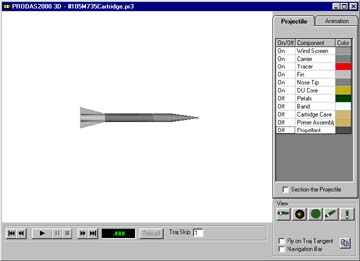

Your 3D Visualizer window should look like this. If you don't have the VCR type controls below the projectile window, close the Visualizer window, back up a page in this tutorial and rerun the 3D Scenario Generator.
