Generate the 3D Trajectory

We now need to set the output time step and then generate the trajectory.

What is really happening in the background is that PRODAS is computing the perfect fire control solution to the problem. Once complete it then reflies the 6DOF trajectory and saves the results.

To make things more interesting, lets give the projectile a little initial angular rate.

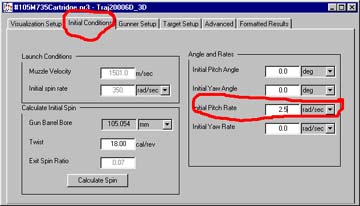

Go to the Initial Conditions tab
Change the Initial Pitch Rate to 2.5 rad/sec

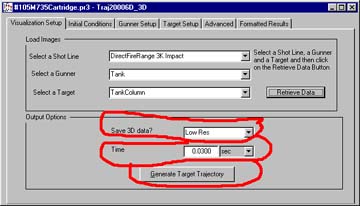

Go back to the Visualization Setup (first) tab
Select Low Res in the list box for Save 3D data ?
Change the sampling Time to 0.030 seconds
Click on the Generate Target Trajectory button
