Setting up the first run

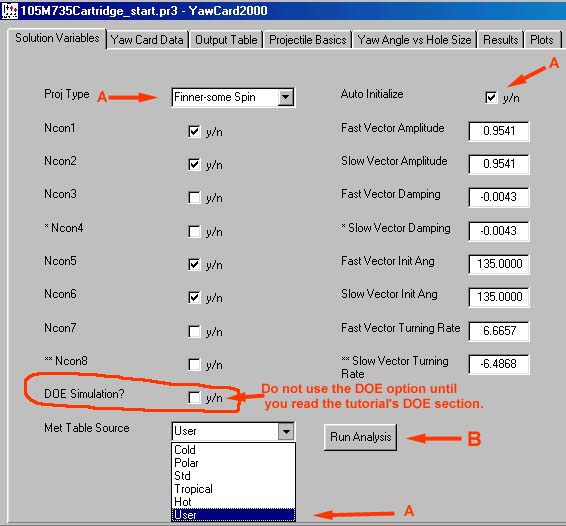

Three inputs must be set from the Solution Variables tab.

The Finner-some spin Projectile type is chosen from the list box.
User is chosen for the Met table source. This is the table that was previously generated based on the atmospheric conditions at the test.
Auto Initialize is checked. This is highly recommended for the first pass through the analysis. The program selects the NCON values to be solved for based on the projectile type. Since the Finner-some spin Projectile type is selected the fast and slow arm magnitudes and the angular orientation will be solved for.

Note that all of the coefficients in the text boxes on the right side of the window have values. These values are the predicted values from the PRODAS database that were determined by other PRODAS analyses.

The analysis is then run by selecting the Run Analysis button.
