Entering Yaw Card Data

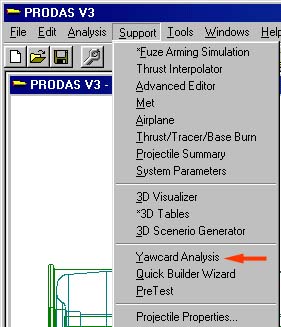

The table of Yaw Card data must be entered. First the Yaw Card Analysis is opened. It is accessed from the Prodas Support menu.

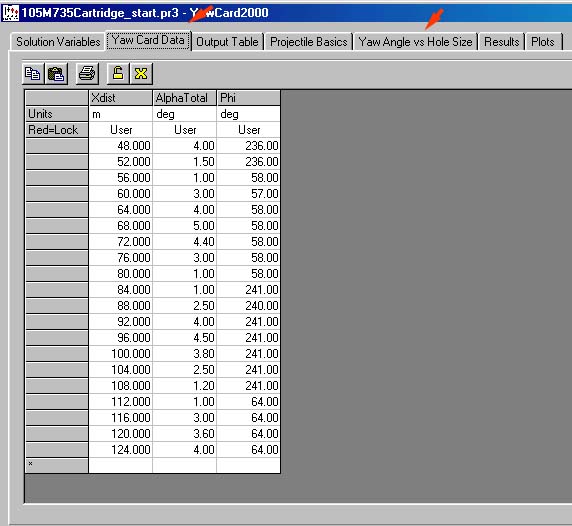

The Yaw Card data is entered in the table on the Yaw Card Data tab. The data to be entered has been extensively discussed earlier in the tutorial. All of the data is either recorded at the time of test, directly read from the card or read from the card and interpolated with the table in the Yaw Angle vs. Hole Size tab.
