| Fin Control Settings |

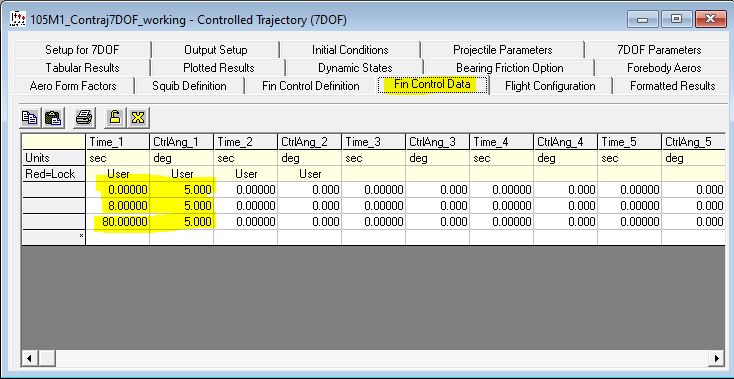

The "Fin Control Data" interface and the "Fin Control Definition" interface should be modified to match the screen shots below. We are telling CONTRAJ 7DOF that we will cant the forward canards to 5 degrees (relative to projectile centerline) and hold that canard cant for 80 seconds after the command is sent from the "Fin Control Definition" interface. In the "Fin Control Definition" interface please note that the "Event On Off" control is set to off, meaning that no maneuver will be done. When this is set to “1” it tells CONTRAJ 7 DOF to start the maneuver at 2 seconds TOF with a roll orientation of the deflected canards normal force being held at a 0 Degree roll angle (Lift vector pushing up). For right now we are focusing on the despinning nose and body performance.
Please modify the "Fin Control Definition" and "Fin Control Data" as follows.
