Example Modifying Bearing Friction

In this example we will demonstrate the effects of various inputs in the 7 DOF Parameters interface. We will be continuing with the projectile that we built in this tutorial.

We will make two runs and cross plot the results. In both runs the "Canard Roll Cant Angle" are set to -4. In the first run the "Bearing Friction Coefficient" is set to 1 and in the second run it is set to 4.

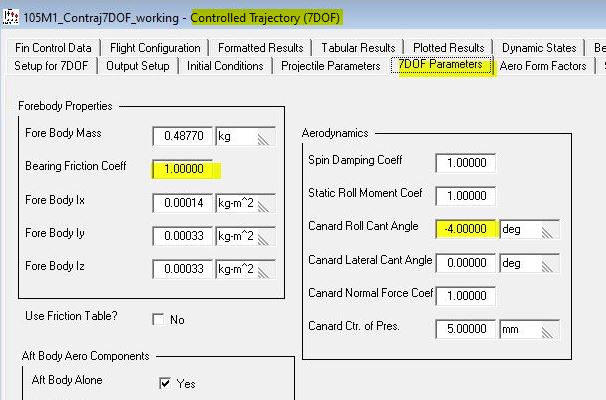

For the first pass please go to the "7DOF Parameters" tab of Contraj 7DOF and make sure the "Bearing Friction Coefficient" is set to 1 and the "Canard Roll Cant Angle" is set to -4 as shown below.
