Check Formatted Output Table

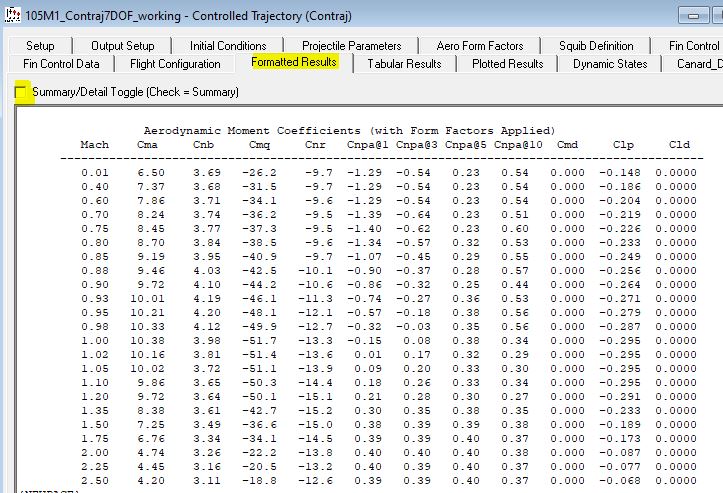

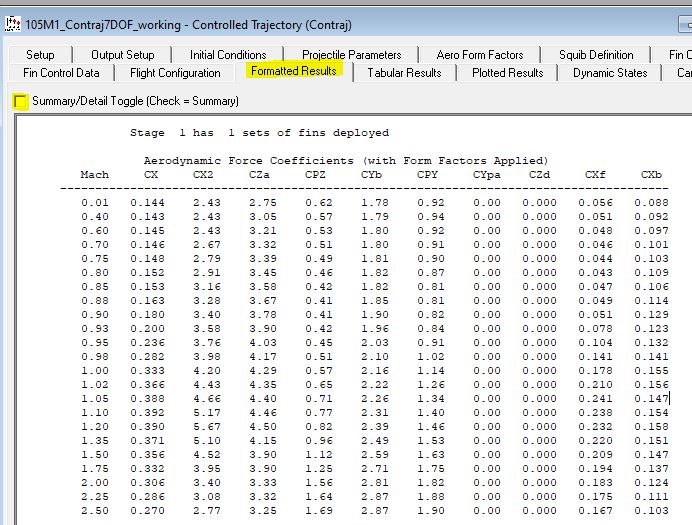

On the "Formatted Output" tab set the output to "Detail" by unchecking the "Summary/Detail" check box. Please check the "Aerodynamic Force Coefficients (with Form Factors Applied)" table and the "Aerodynamic Moment Coefficients (with Form Factors Applied)" table which are shown in the screen captures below.

Contraj builds up the aero coefficient states for the total body in the alpha and beta planes based on the Fin Aeros table that we modified. The tables display the results.

These coefficient tables should be copied and imported into Excel for copying and pasting back into the PRODAS "Basic Aero Table". The next few pages go into detail on how and what to paste. The "Basic Aero Table" represents the aeros in the Alpha plane and should be updated so the User can assess the Gyro stability in the Alpha Plane.
