Running Mass Properties

By pasting the assembly, the physical dimensions, component physical functions, and element aerodynamic functions have been copied from the original model; however, the mass properties and aerodynamics have been reset and must be recalculated.

We will run Mass Properties now.

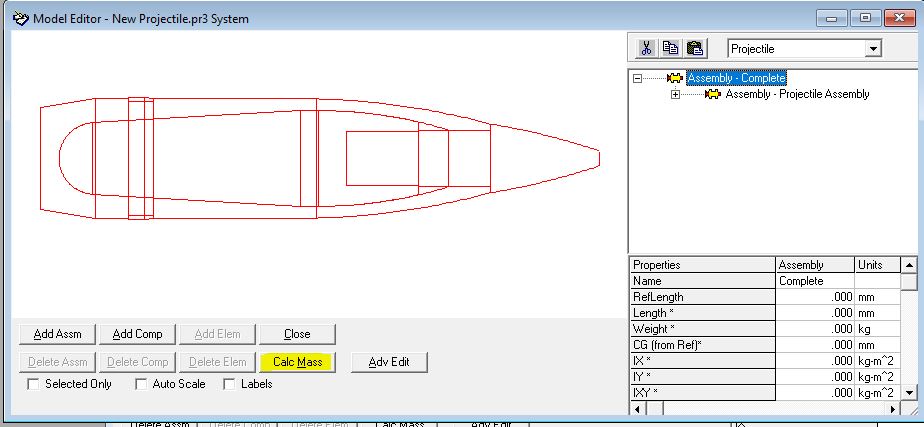

Mass properties can either be accessed from the PRODAS analysis menu or in this case by clicking the "Calc Mass" button in the model editor as shown below.
