Guidance and Control Overview

The Guidance and Control system combines a Flight Control Simulator(FCS) and a 6DOF Trajectory analysis into one analysis system.

Highlights include:

A drop and drag style Flight Control System Builder for defining the control system to be modeled.
A Flight Control System Visualizer that is an Oscilloscope style tool designed to reveal the inner workings of the FCS system during the trajectory simulation.
A Body Fixed 6DOF trajectory, which interacts with the Flight control system simulation that is running concurrently.

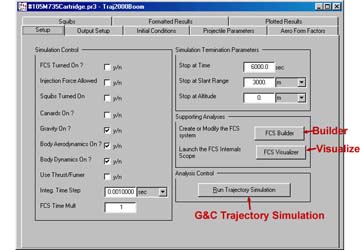

The main G&C window is shown below. All of the supporting modules are accessed from the buttons as indicated.
