Data Tree Window

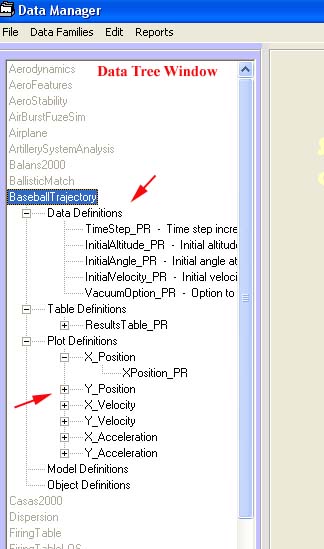

The left window is the data tree window. It is used to navigate within the Data Families. It uses standard window methods to expand or compress a view.

Items that can be expanded are preceded by a "+".
Items that have already been expanded are preceded by a "-".
To toggle between an expanded and a compressed view just double click on the item in the data tree window.

You can see that the Baseballtrajectory family has datapoints, tables and plots defined. We will explain all of the items. At this point just note that this window is used to navigate within the structure and any editing is done in the right window.
