| Initial Run with No Match |
At this point we have set and checked all of our inputs. We are now ready to run the analysis.

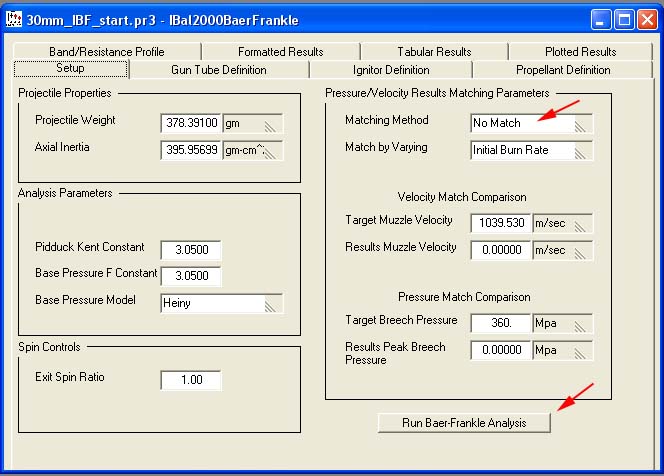

For our problem our goal is to find a solution which matches our desired pressure of 360 mpa. As you can see there are many inputs and before jumping into an iterative loop where the program is working to match either a desired Pressure or Velocity it is a good idea to run with No Match just as a sanity check of the inputs.
To run the program go back to the setup tab and click Run Baer-Frankle Analysis
