| Band/Resistance Profile Tab |

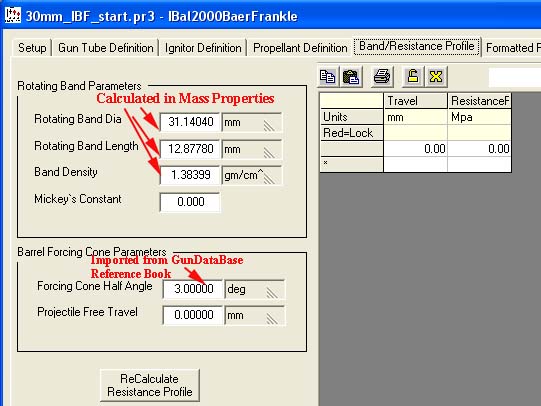

Initially the Band/Resistance Profile inputs are shown in the picture below. Since our Model has a Rotating Band component, Mass properties calculated the Rotating Band Geometry items and they are automatically passed to Baer Frankle. The Barrel Forcing Cone Half Angle is set from when we imported the GunDataBase Reference Book.
Notice that the Barrel Forcing Cone Parameters in the lower left of the input page are also on the Gun Tube Definition Tab. These parameters can be changed on either tab. They are just duplicated for the user's convenience.
