The Controlled Trajectory system combines a control force generator (via canard deflection or thrust impulse) and a 6DOF Body Fixed Trajectory analysis into one analysis system.

Highlights include:

• Choice of control force type: Fin Control or Control Thruster
• Modeling of up to 10 control events via time during trajectory
• A Body Fixed 6DOF trajectory, which interacts with the control system simulation that is running concurrently.

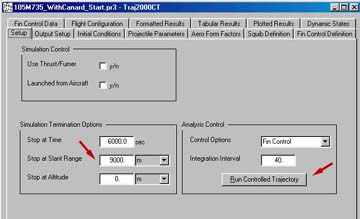

  The main Controlled Trajectory window is shown below.
