Automatic Unit Conversion and labels in Formatted Output

To allow us to provide our formatted output in the units (US or Metric) in which the user is working, PRODAS sends us two arrays:

The first is the RMET_S array which has conversions to convert each of our units from the SDK Standard Units to the unit that is currently set for that type of unit for this projectile.
The second is the RMET_L array which has the labels for the units

and a key to which RMET_S, RMET_L element corresponds to which SDK unit.

To be able to use this information all you have to do

is convert the value that you want to output to the SDK Standard for that unit
multiply by the appropriate RMET_S and use the corresponding RMET_L.

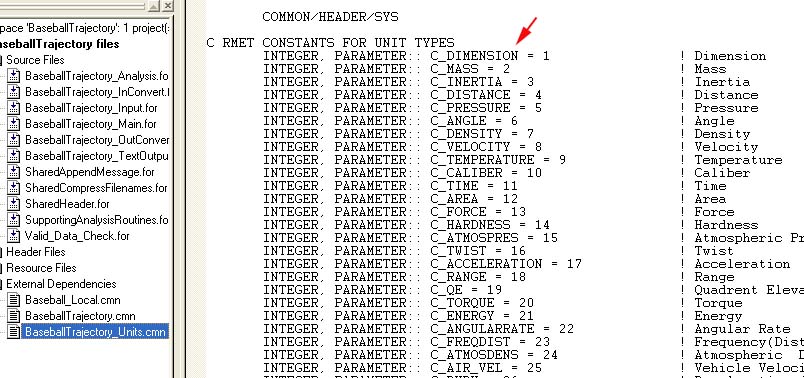

One of the self generated common blocks provides the key to which RMET_Sand RMET_L go with each standard unit type as shown below. So if you want to output a dimension variable you must

Note from the screen below that dimension is the first rmet
Look up in the table from this tutorial that the SDK unit for dimension is meters
If necessary convert your variable to meters, multiply by RMET_S(1) and use the RMET_L(1) as the label
