DOE - Design of Experiments Simulation

The DOE or Design of Experiments Simulation option generates an optimal Yaw Data set.

It is important to note that when the DOE option is selected and the analysis is run the Yaw Card Data is overwritten. The Yaw Card Data is the table of Yaw Card test data that is hand entered on the Yaw Card Data tab.

A sample scenario for running the DOE Simulation is as follows:

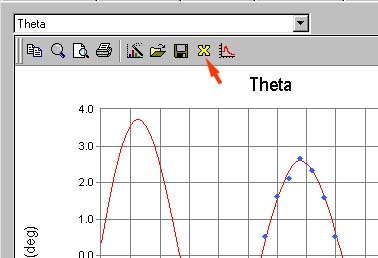

First go to the plot menu and send the current analysis results to cross plots (Click the yellow "X")

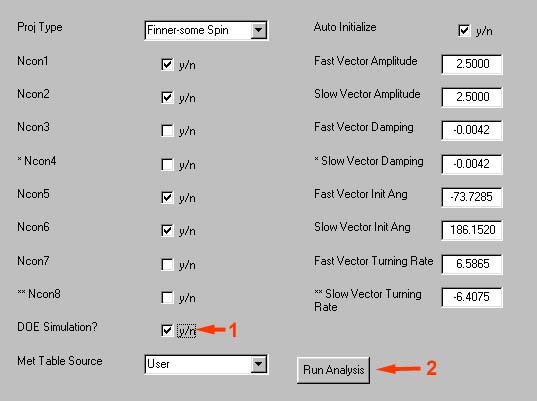

Return to the "Solution Variables" window and check the DOE Simulation box
Click the "Run Analysis" button and then go to the plot menu and repeat the cross plot process.

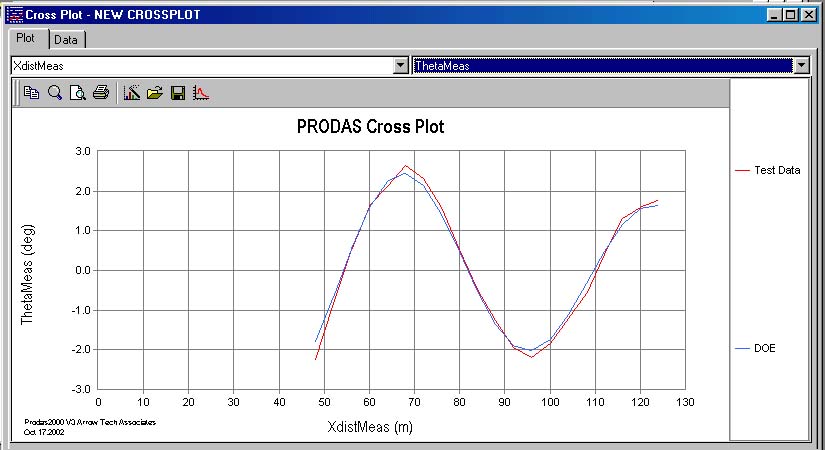

Open the Cross plot and compare the results.
