Following the echoed inputs on the results tab are

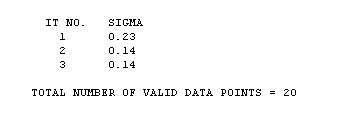

- A summary of the analysis fit, which documents the number of iterations the program made and the error between the calculated data and the test data. These are shown below along with the number of data points used in the analysis. This represents a convergence to best fit.

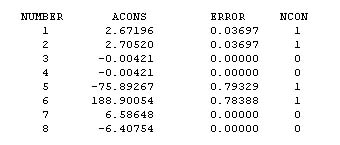

- Final values and errors calculated for the ACONS activated are shown next. These are the Linear Theory parameters resulting from matching the experimental measurements.

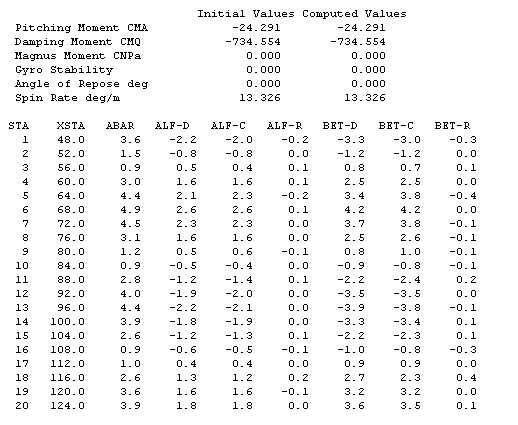

- Finally the last two tables shown are the aerodynamic coefficients resulting from the determined Linear Theory Parameters (and compared to the initial aerodynamics used to start the solution) and a tabular comparison of the computed angular motion (ALF-C = Alpha Computed, BET-C = Beta Computed). The -D corresponds to the actual input data and -R corresponds to the difference between the computed angle and actual data based on a Linear Theory match to the motion measurements.
