Generating a Hole Length vs. Yaw Angle Table

To Translate the hole length data to yaw angle data we need to generate a length to angle of attack table. This table is generated from the projectile geometry every time the Yawcard Analysis is run.

To do this, open the Yawcard Analysis module from the "Support" menu.

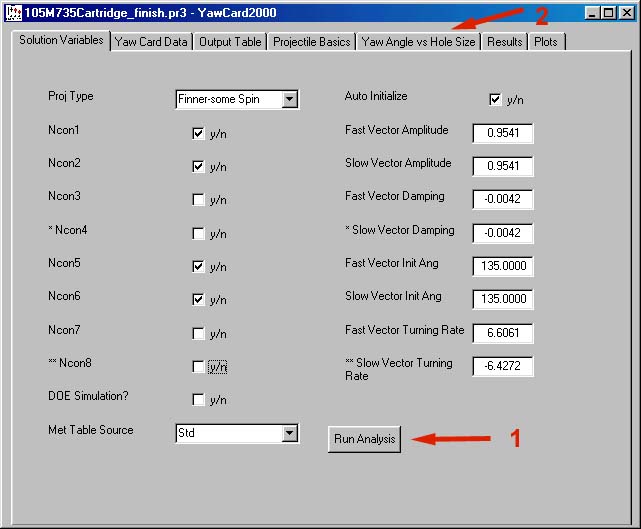

Click on the "Run Analysis" button. There are no inputs that must be checked before running the analysis. The Yaw Angle vs. Hole Size table is calculated solely based on the projectile geometry.

After the analysis executes click on the "Yaw Angle vs Hole Size" tab. You will then see a table of corresponding yaw angles to hole length.
