| Set the desired output values |

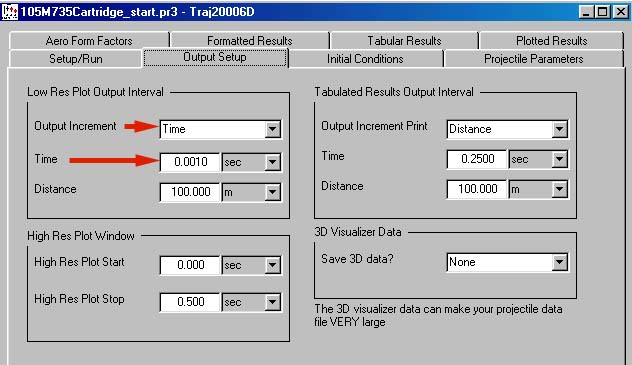

Prior to executing the trajectory simulation open the Output Setup window. Adjust the Low Res Plot Output Increment to "time" and adjust the Time parameter to a small value. The time increment is set very small to assure that the motion is captured. (i.e. sufficient output points per frequency period).
If after the simulation is run and the plotted angular motion does not appear smooth return to this window and adjust the Time data window to a smaller value.
