| Viewing in the Model Editor |

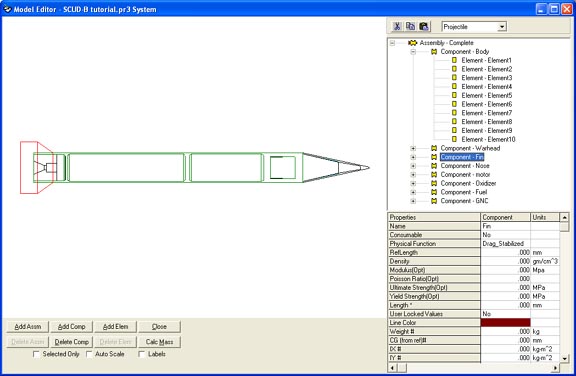

The Model Editor which can be accessed from the PRODAS Edit menu is a good place to examine the model.
Assembly-Complete contains the data which was transferred from the Projectile Tracing Tool. It contains the eight components that we modeled. The first component is made of ten elements.
The material properties and fin specifics are not defined. We have some work to do but look what we have to start with.
