Checking our Tutorial's PR3 File

In this example we will be using ...\ProdasV3\ProjectileData\examples\BOT\155mm_rap.pr3. The analysis will be the Fixed Plane 6D Trajectory. Lets

Open the projectile
Set the inputs that we want for our first run
Run the Analysis
Look at the results, which will confirm the basic state of the saved file

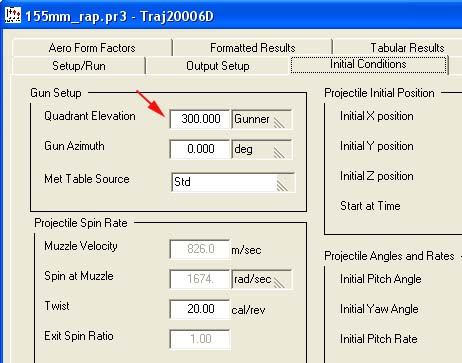

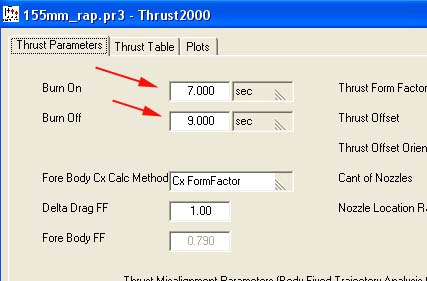

The burn rate inputs are set on the form accessed by selecting Thurst/Tracer/BaseBurn from the PRODAS Support menu and the quadrant elevation is on the initial conditions tab on the Trajectory 6D analysis forms as shown below.

After running the analysis the results looked good so we are confident that the projectile ready. In our example we are just using this one projectile.
