Plot of the Footprint Using the Text Results

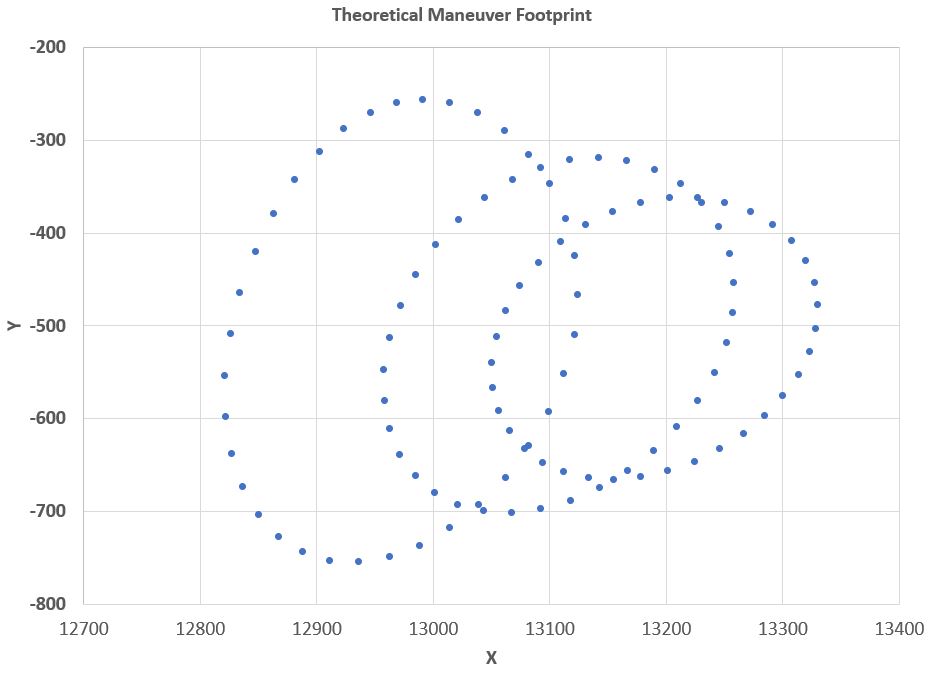

The following is a plot of Y vs X. To produce this plot, I imported and plotted the X and Y data from the text file into Excel. This is the theoretical maneuver footprint.
