| Check 7DOF Setup |
When the script is run, it will attach to the open active projectile. Some variables are set in the script. Any values not set in the script come from the projectile. It is important to make sure your projectile is defined the way you want it before the script is run.
In our example, the script does not set the "Fin Control Data". Please make sure your "Fin Control Data" is set as shown in the screen capture below.

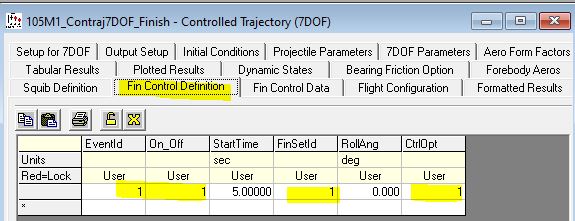

Our script sets the "Fin Control Definition" canard deployment times and the roll angles. Please make sure the following highlighted "Fin Control Definition" values as set as in the screen capture below. These values are not defined in the script.
