We will be comparing 3 plots. Two of the plots are stored in one group of plots and the third plot is stored in another group of plots. We will end up with two cross plot windows one for each group of plots.

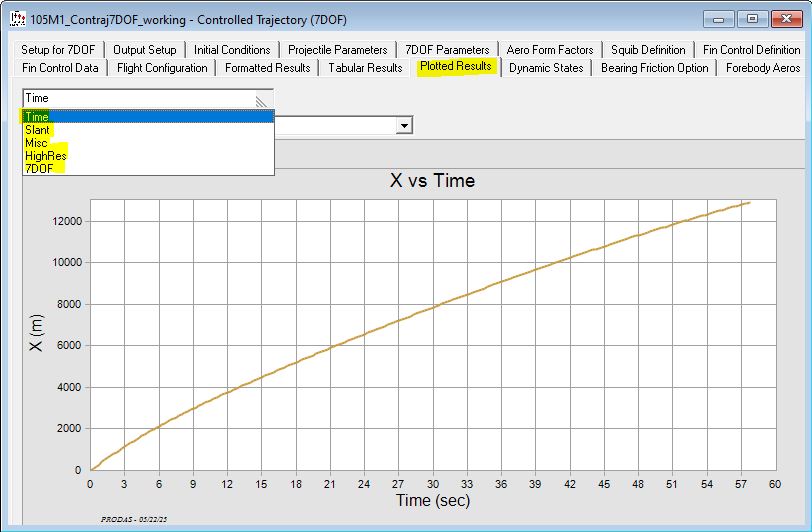

On the Contraj 7DOF's "Plotted Results" tab there are categories of plots in the top list box and plot selections in the lower list box.

The top list box defines the group of data to be plotted. In this case there are actually three groups. The groups are:

Time, Slant and Misc are the same group of data
HighRes is a separate group of data
7DOF is the final group of data

For this example we will be looking at 2 plots in the first group and 1 plot in the final or 7DOF group of data.
