We are going to save the results to cross plots. We will compare the results to the already saved Contraj 7DOF run results.

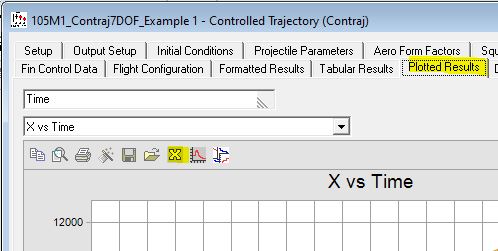

Please go to the "Plotted Results" tab and click the "X" icon as shown below. Note, if the plot toolbar is not present right click on the plot and click "Toolbar".

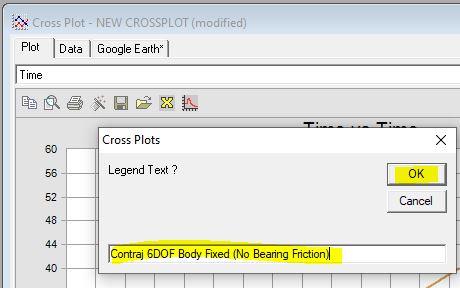

The interface to name the cross plot will appear. For this example, entered "Contraj 6DOF Body Fixed (No Bearing Friction)" the clicked OK as shown below.
