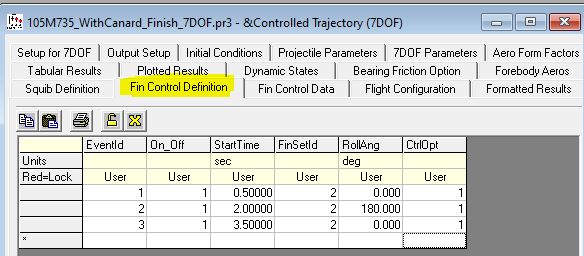

Please input the Fin Control Definitions as they appear in the screen. The inputs are defined below the screen capture.

Note that there are three events defined. For each event

• The event is turned on. The On_Off is set to 1.
• The event acts on fin set two which is the forward canards. The FinSetId is set to 2.
• The event is Fixed Roll Angle. The EventId is set to 1.

The event maneuvers are as follows

1. Deflection up (0 degree roll angle) at .5 seconds TOF. The StartTime is set to .5, the RollAng is set to 0 and the EventID is set to 1.
2. Deflection down (180 degree roll angle) at 2 seconds TOF. The StartTime is set to 2, the RollAng is set to 180 and the EventID is set to 2.
3. Deflection up (0 degree roll angle) at 3.5 seconds TOF. The StartTime is set to 3.5, the RollAng is set to 0 and the EventID is set to 3.
